I Working Principal
1. Operating conditions of pump
The pump is designed to transfer mechanical energy into hydraulic energy. When the prime mover drives the main shaft for rotation, the shaft will rotate the cylinder block with help of the connecting rod and plunger. The plunger makes a reciprocating movement in the cylinder block; meanwhile, the volume of the plunger hole in the cylinder block will be changed, When the volume is becoming larger, the medium will be pumped in from the suction inlet of the pump and flow into the plunger hole through the LP window of the distribution disk; when the volume is becoming smaller, the medium is discharged from the discharge outlet of the pump through the HP window of the distribution disk. Therefore, along with a rotation of the main shaft, each plunger hole will finish a process of suction and discharge.

2. Operating conditions of motor
The motor is designed to transfer hydraulic energy into mechanical energy, When the HP oil enters the plunger hole of the cylinder block through the HP window of the distribution disk from the oil inlet of the motor, it will push the plunger for movement. Due to an angle is formed between the axial line of the cylinder block and the axial line of main shaft, the hydraulic force will act on the main shaft via the connecting rod, resulting in a tangential force, which will push the main shaft for rotation and deliver a torque. Meanwhile, the oil will be thrown off from the plunger hole due to the inertial rotation of the cylinder block. Then, the oil will flow through the LP window of the distribution disk and be discharged via the discharge opening of the motor.

II Application
1. Application conditions
a. Temperature of oil£ºThe normal working temperature of A2F series pump/motor is between -25¡æ to80¡æ, with a maximum temperature of 90¡æ. When the temperature is lower than 10¡æ, heating method shall be taken.
b. Viscosity of medium£ºThe viscosity of working medium shall be within 16-43 mm2/s. When the seasonal temperature difference is too large and the requirement of viscosity can not be met, you must change another working medium.
c. Precision of oil filtration£ºThe optimum precision for oil filtration is 5-10 um, and the limit is no less than 25 um.

2. The common work pressure of the pump/motor shall not exceed the ratings and the normal working rotation speed shall not exceed the 60% of the maximum value, The transient values shall not exceed the allowed the allowed maximum value, The pump/motor is normally capable of 1 minute continuous operation at maximum value, and the total time of it shall be no more than 10% of a shift.

3. The allowed pressure for leakage oil inside the enclosure is 0.1 MPa.

4. Requirements for installation
a. A flexible coupler is adopted to connect the pump and the prime mover, with coaxiality onmore than 0.1 mm.
b. During the installation of the coupler, care must be taken for no use of hammering and a coupling shall be selected reliably.
c. The supports of the pump/motor shall be with a certain rigidity, to prevent from vibration.
d. The leakage oil tube shall be higher than the highest point of the pump/motor to ensure the pump/motor is filled with oil.
e. For self-priming pump, the location of the pump shall be lower than the lowest level of the oil tank.
f. Pipes and fittings that are connected to the pump must be strictly cleaned, and no debris, rust, etc. is allowed to be left in the pipes.

III Test Run
1. Inspection prior to test run
a. Check the pump/motor for completeness and the main shaft for even rotation, If the pump/motor is stored for long time, it shall be dismantled and cleaned at first.
b. Check various pipes oil tanks and elements for cleaning,
c. Check the installation of pump/motor and the connection of system for correctness and reliability; check the supports of the pump/motor for enough rigidity.
d. Check whether the rotation direction of the pump/motor is same with that of the prime mover and the loads; check the oil inlet and outlet for correctness in accordance with the rotation direction.
e. Check the viscosity of the medium and the precision of the oil filter according to requirements.
f. Check whether the pump/motor is filled with medium; check whether the leakage pipes meet the requirements.

2. Test run
a. Unscrew the pressure control valve and let the pump start up under no-load. Let the motor start up with 10% of its rated load.
b. The pump/motor starts up under no-load or lower load and at low rotation speed. When the pump/motor starts up, pay attention to its operation for any abnormal conditions in the system.
c. Exhaust the air in the system. The closed system can be exhausted via vent port and the open system can be exhausted through operating for a certain time under no load.
d. After the pump, motor and the system come to normal run, keep running continuously for 30 minutes under no load (10% of rated pressure), them gradually increase the pressure and the speed, till the rated conditions.
e. Check the pump, motor and the system for any abnormal conditions, such as external leakage, noise, vibration, temperature rising, etc. If there is any abnormal, stop the pump for inspection and only return to test run till the fault is solved.
f. After test run is finished, the, medium shall be changed and the oil filter shall be cleaned, then the pump could be put into normal operation.

IV Maintenance and Service
1. The objective is to get the optimum efficiency and the longest service life of the pump/motor. During the normal operation of the pump/motor, the user shall make a reasonable schedule to check the quality of the medium, change the medium, clean the oil filter and oil tank according to the working conditions of the pump/motor, in order to ensure the quality and cleanness of the medium, For the period of medium replacement and oil filter and oil tank cleaning, 3-6 months is recommended. During the change of the medium, care must be taken to no mixing up the new medium with the old one.

2. For the examination and repair of mainframe, the user is not allowed to dismantle and inspect the pump/motor, When necessary a professional shall be asked for the dismantling and maintenance.

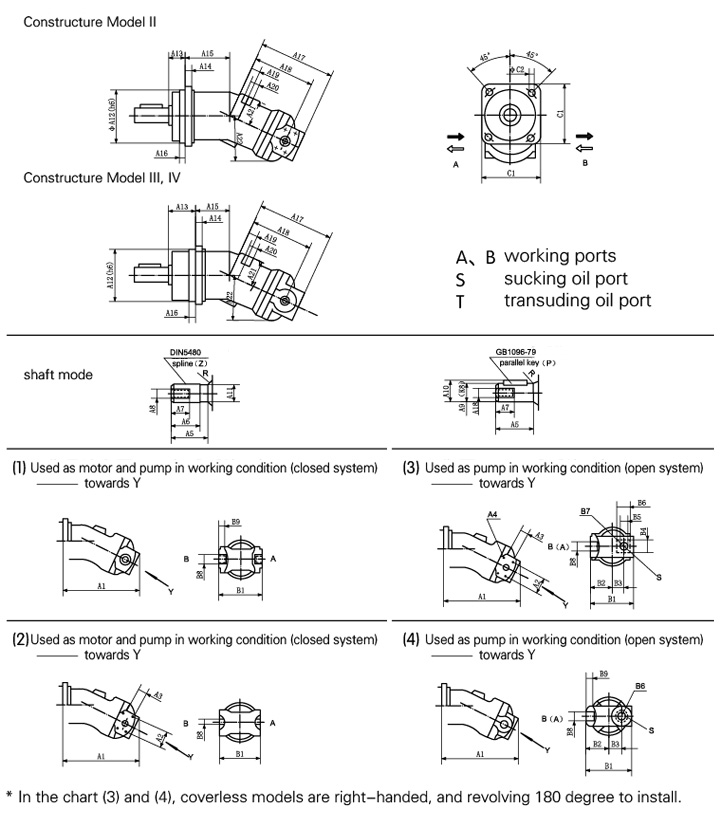

Dimensions of A2FK

Specification
Constructure
Model
Type of
rear cover
A1
A2
A3
A4
A5
A6
A7
A8
1
2
3
4
Z
P
A2F/K-6
4
1--4
154
-
-
154
-
-
-
34
K30/40
22
16
M6
A2F/K-10
4
1--4
152
-
-
152
-
-
-
34
K30/40
22
16
M6
A2F/K-12
4
1--4
152
-
-
152
-
-
-
34
K30/40
22
16
M6
A2F/K-23
3
1--4
196
-
-
196
-
-
-
43
K38/50
28
19
M8
A2F/K-28
3
1--4
193
-
-
193
-
-
-
43
K38/50
28
19
M8
A2F/K-45
2
1¡¢2¡¢3-
292
292
287
-
50.8
23.8
M10 Deep17
35
K49/60
28
28
M12
A2F/K-55
2
1¡¢2¡¢3-
289
289
284
-
50.8
23.8
M10 Deep17
35
K49/60
28
28
M12
A2F/K-63
2
1¡¢2¡¢3-
350
350
345
-
57.2
27.8
M12 Deep17
40
70
33
28
M12
A2F/K-80
2
1¡¢2¡¢3-
348
348
342
-
57.2
27.8
M12 Deep17
40
70
33
28
M12
A2F/K-90
2
1¡¢2¡¢3-
360
360
352
-
57.2
27.8
M12 Deep17
45
K66/80
37.5
28
M12
A2F/K-107
2
1¡¢2¡¢3-
356
356
348
-
57.2
27.8
M12 Deep17
45
K66/80
37.5
28
M12
A2F/K-125
2
1¡¢2¡¢3-
422
422
417
-
66.7
31.8
M14 Deep19
50
90
43
36
M16
A2F/K-160
2
1¡¢2¡¢3-
416
416
410
-
66.7
31.8
M14 Deep19
50
90
43
36
M16

Specification
A9
A10
A11
R
A12
A13
A14
A15
A16
A17
A18
Z
P
1
2
3
4
A2F/K-6
20
22.5
16.7
1.2
0.4
80
40/K57
12.5
42
8
112
-
-
112
90
A2F/K-10
20
22.5
16.7
1.2
0.4
80
40/K57
12.5
42
8
112
-
-
112
90
A2F/K-12
20
22.5
16.7
1.2
0.4
80
40/K57
12.5
42
8
112
-
-
112
90
A2F/K-23
25
28
21.5
1.2
0.6
100
50/K73
16
50
8
145
-
-
145
118
A2F/K-28
25
28
21.5
1.2
0.6
100
50/K73
16
50
8
145
-
-
145
118
A2F/K-45
30
33
25
1.6
1.6
125
32/K43
20
108
10
183
183
178
-
151
A2F/K-55
30
33
25
1.6
1.6
125
32/K43
20
108
10
183
183
178
-
151
A2F/K-63
35
38.5
30
1.6
1.6
140
32
23
137
10
213
213
208
-
173
A2F/K-80
35
38.5
30
1.6
1.6
140
32
23
137
10
213
213
208
-
173
A2F/K-90
40
43.5
35
1.6
1.6
160
40/K56
25
130
10
230
230
225
-
190
A2F/K-107
40
43.5
35
1.6
1.6
160
40/K56
25
130
10
230
230
225
-
190
A2F/K-125
45
49
40
2.5
2.5
180
40
28
156
10
263
262
257
-
212
A2F/K-160
45
49
40
2.5
2.5
180
40
28
156
10
263
262
257
-
212

Specification
A19
A20
A21
A22
B1
B2
B3
B4
B5
B6
B7
1
2
3
4
A2F/K-6
10
M12¡Á1.5
40
69
85
-
-
85
42.5
18
-
-
M33¡Á2 Deep18
-
A2F/K-10
10
M12¡Á1.5
40
75
85
-
-
85
42.5
18
-
-
M33¡Á2 Deep18
-
A2F/K-12
10
M12¡Á1.5
40
75
85
-
-
85
42.5
18
-
-
M33¡Á2 Deep18
-
A2F/K-23
25
M16¡Á1.5
50
88
106
-
-
106
53
25
-
-
M42¡Á2 Deep20
-
A2F/K-28
25
M16¡Á1.5
50
95
106
-
-
106
53
25
-
-
M42¡Á2 Deep20
-
A2F/K-45
31.5
M18¡Á1.5
63
109
132
126
129
-
63
29
48
48
§¶45
M10 Deep16
A2F/K-55
31.5
M18¡Á1.5
63
118
132
126
129
-
63
29
48
48
§¶45
M10 Deep16

Specification
B8
B9
C1
C2
C3
C4
Parallel Key
GB1096-79
Spline
DIN5480
1
2
3
4
A2F/K-6
M22¡Á1.5
-
-
M22¡Á1.5
14
95
9
100
10
6¡Á6¡Á32
W20¡Á1.25¡Á30¡Á14¡Á9g
A2F/K-10
M22¡Á1.5
-
-
M22¡Á1.5
14
95
9
100
10
6¡Á6¡Á32
W20¡Á1.25¡Á30¡Á14¡Á9g
A2F/K-12
M22¡Á1.5
-
-
M22¡Á1.5
14
95
9
100
10
6¡Á6¡Á32
W20¡Á1.25¡Á30¡Á14¡Á9g
A2F/K-23
M27¡Á2
-
-
M27¡Á2
16
118
11
125
12
8¡Á7¡Á40
W25¡Á1.25¡Á30¡Á18¡Á9g
A2F/K-28
M27¡Á2
-
-
M27¡Á1.5
16
118
11
125
12
8¡Á7¡Á40
W25¡Á1.25¡Á30¡Á18¡Á9g
A2F/K-45
M33¡Á2
§¶19
§¶19
-
18
150
13.5
160
16
8¡Á7¡Á50
W30¡Á2¡Á30¡Á14¡Á9g
A2F/K-55
M33¡Á2
§¶19
§¶19
-
18
150
13.5
160
16
8¡Á7¡Á50
W30¡Á2¡Á30¡Á14¡Á9g
